Electric Automobile Battery Case 4mm Thin Aluminum Strips

Henan Yongsheng Aluminum Industry Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

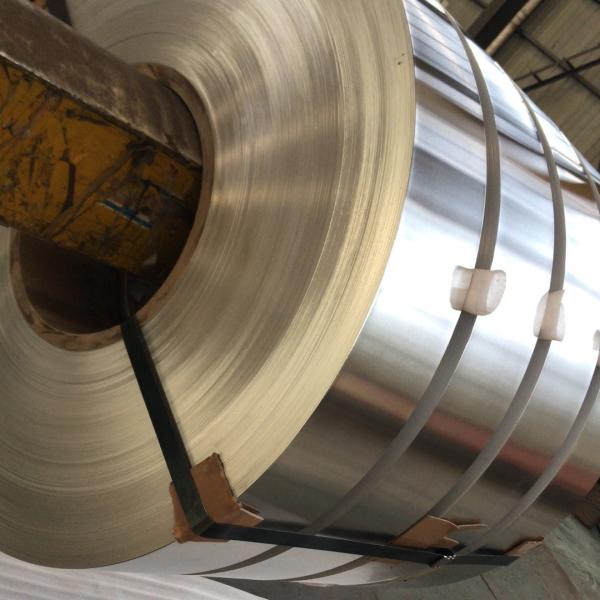

Electric Automobile Battery Case 4mm Thin Aluminum Strips

Brand Name : Yongsheng

Model Number : ALuminum strip

Certification : SGS

Place of Origin : China

MOQ : 1 tons

Price : USD2500tons

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Supply Ability : 5000tonspermonth

Delivery Time : 20workdays

Packaging Details : wooden package

Product Name : Aluminum Strip Coil

Brand : Yongsheng Aluminum Industry Co., Ltd.

Alloy/Grade : 1000series-8000series

Temper : O - H112 , T3 - T8 , T351 - T851

Tolerances : As per your requirements

Thickness : 0.13mm - 5.0mm

Width : 3mm-2600mm

Length : As per your requirements

Coil ID : As per your requirements

Contact Now

Name : Electric Automobile Battery Case 4mm Thin Aluminum Strips


Aluminum Strip Description
Aluminum strip is a deep - processed product made of aluminum coil cut.Aluminum with many uses , such as : aluminum composite pipe , cable , optical cable , transformers , heaters , blinds and so on . It is an important industrial raw material . According to the different alloying elements contained in the aluminum strip , aluminum strip and aluminum plate are also divided into 8 series . But the commonly used series are 1000 series , 3000 series , 5000 series and 8000 series .

HENAN YONGSHENG Aluminum Co. , Ltd , A professional manufacturer devoted to Aluminum strip 1050 / 1060 / 1070 3XXX 5XXX 8XXX producion ,The partner you can trust !

If you want to know more about our Aluminum products or Aluminum Coil , please feel free to contact us , we will reply you within 24 hours .

  • Features of the 1 series :

It belongs to a series containing the most aluminum.Contains more than 99.00% aluminum, good electrical conductivity, good corrosion resistance, good welding performance, low strength.Used in conventional industry.

  • Features of the 2 series :

The hardness is high, in which the copper element content is the highest, about 3-5%. Mn, magnesium, lead and bismuth are also added for machinability.Used in the field of aviation.

  • Features of the 3 series :

It is mainly composed of manganese.The content is between 1.0% and 1.5%, used for industries and products with high requirements for rust prevention.Good corrosion resistance, good weldability and good plasticity.

  • Features of the 5 series :

It belongs to the series of commonly used alloy aluminum plate, the main element is magnesium.The main characteristics are low density, high tensile strength, high elongation, good fatigue strength, but can not be strengthened by heat treatment.It is also widely used in conventional industry.

  • Features of the 6 series :

Contains mainly magnesium and silicon, suitable for corrosion resistance, oxidation demanding applications.

  • Features of the 7 series :

It belongs to aeronautical series, aluminum magnesium zinc copper alloy, heat treatable alloy, super hard aluminum alloy, has good wear resistance, also has good weldability, but corrosion resistance is poor.

Alloy State Thickness(mm) Tensile Strength(Mpa) The Yield Strength(Mpa) elongation(%) hardness(HV)
1060
(1050)
0 >0.2-0.5 60-100 ≥15 ≥20 20-30
>0.5-1.0 ≥30
>1.0-4.0 ≥35
H22 >0.2-0.5 80-120 ≥60 ≥12 30-40
>0.5-1.0 ≥15
>1.0-4.0 ≥18
H24 >0.2-0.5 95-135 ≥70 ≥6 35-45
>0.5-1.0 ≥8
>1.0-4.0 ≥10
H26 >0.2-0.5 110-155 ≥75 ≥2 43-55
>0.5-1.0 ≥4
>1.0-4.0 ≥6
H18 >0.2-0.5 ≥125 ≥85 ≥2 50-65
>0.5-1.0 ≥3
>1.0-4.0 ≥4
1100
(1200)
0 >0.2-0.5 75-105 ≥25 ≥18 25-30
>0.5-1.0 ≥30
>1.0-4.0 ≥35
H22 >0.2-0.5 95-130 ≥75 ≥12 30-40
>0.5-1.0 ≥15
>1.0-4.0 ≥18
H24 >0.2-0.5 110-145 ≥95 ≥6 38-40
>0.5-1.0 ≥8
>1.0-4.0 ≥10
H26 >0.2-0.5 130-165 ≥115 ≥2 45-60
>0.5-1.0 ≥4
>1.0-4.0 ≥6
H18 >0.2-0.5 ≥150 ≥130 ≥2 55-70
>0.5-1.0 ≥3
>1.0-4.0 ≥4
3003
(3A21)
0 > 0.2-0.5 95-140 ≥ 35 ≥ 15 30-40
> 0.5-1.0 ≥ 30
> 1.0-4.0 ≥ 35
H22 > 0.2-0.5 120-160 ≥90 ≥ 12 39-53
> 0.5-1.0 ≥ 15
> 1.0-4.0 ≥ 18
H24 > 0.2-0.5 145-195 ≥125 ≥ 6 42-59
> 0.5-1.0 ≥ 8
> 1.0-4.0 ≥ 10
H26 > 0.2-0.5 170-210 ≥150 ≥ 2 55-65
> 0.5-1.0 ≥ 4
> 1.0-4.0 ≥ 6
H18 > 0.2-0.5 ≥ 190 ≥ 170 ≥ 2 60-85
> 0.5-1.0 ≥ 3
> 1.0-4.0 ≥ 4
3004
(3104)
0 > 0.2-0.5 155-200 ≥ 60 ≥ 13 49-62
> 0.5-1.0 ≥ 16
> 1.0-4.0 ≥ 20
H22 > 0.2-0.5 190-240 ≥ 145 ≥ 10 60-84
> 0.5-1.0 ≥ 12
> 1.0-4.0 ≥ 14
H24 > 0.2-0.5 220-265 ≥ 170 ≥ 8 68-100
> 0.5-1.0 ≥ 10
> 1.0-4.0 ≥ 12
H26 > 0.2-0.5 240-285 ≥ 190 ≥ 3 72-110
> 0.5-1.0 ≥ 4
> 1.0-4.0 ≥ 6
H18 > 0.2-0.5 ≥ 260 ≥ 230 ≥ 2 85-120
> 0.5-1.0 ≥ 2
> 1.0-4.0 ≥ 3
3005 0 >0.2-0.5 115-165 ≥45 ≥13 35-45
>0.5-1.0 ≥20
>1.0-4.0 ≥25
H22 >0.2-0.5 145-195 ≥110 ≥10 40-60
>0.5-1.0 ≥15
>1.0-4.0 ≥15
H24 >0.2-0.5 170-215 ≥130 ≥6 58-70
>0.5-1.0 ≥8
>1.0-4.0 ≥10
H26 >0.2-0.5 195-240 ≥160 ≥3 65-83
>0.5-1.0 ≥4
>1.0-4.0 ≥6
H18 >0.2-0.5 ≥220 ≥200 ≥2 80-100
>0.5-1.0 ≥3
>1.0-4.0 ≥3
3105 0 >0.2-0.5 75-105 ≥25 ≥14 32-42
>0.5-1.0 ≥20
>1.0-4.0 ≥25
H22 >0.2-0.5 95-130 ≥75 ≥10 39-60
>0.5-1.0 ≥12
>1.0-4.0 ≥12
H24 >0.2-0.5 110-145 ≥95 ≥8 52-62
>0.5-1.0 ≥10
>1.0-4.0 ≥10
H26 >0.2-0.5 130-165 ≥115 ≥3 58-72
>0.5-1.0 ≥4
>1.0-4.0 ≥6
H18 >0.2-0.5 ≥150 ≥130 ≥2 65-95
>0.5-1.0 ≥2
>1.0-4.0 ≥3
5005 0 >0.2-0.5 100-145 ≥35 ≥15 33-43
>0.5-1.0 ≥20
>1.0-4.0 ≥25
H22 >0.2-0.5 125-165 ≥80 ≥12 30-53
>0.5-1.0 ≥15
>1.0-4.0 ≥18
H24 >0.2-0.5 145-185 ≥110 ≥8 40-60
>0.5-1.0 ≥10
>1.0-4.0 ≥10
H26 >0.2-0.5 165-205 ≥135 ≥3 50-68
>0.5-1.0 ≥4
>1.0-4.0 ≥6
H18 >0.2-0.5 ≥185 ≥165 ≥2 57-68
>0.5-1.0 ≥2
>1.0-4.0 ≥3
5052
(5251)
0 > 0.2-0.5 170 - 215 ≥ 65 ≥ 14 50 - 70
> 0.5-1.0 ≥ 17
> 1.0-4.0 ≥ 20
H22 > 0.2-0.5 210 - 260 ≥ 130 ≥ 8 70 - 85
> 0.5-1.0 ≥ 10
> 1.0-4.0 ≥ 10
H24 > 0.2-0.5 230 - 280 ≥ 150 ≥ 4 80 - 110
> 0.5-1.0 ≥ 6
> 1.0-4.0 ≥ 6
H26 > 0.2-0.5 250 - 300 ≥ 180 ≥ 2 85 - 115
> 0.5-1.0 ≥ 4
> 1.0-4.0 ≥ 6
H18 > 0.2-0.5 ≥ 270 ≥ 240 ≥ 2
> 0.5-1.0 ≥ 2
> 1.0-4.0 ≥ 3


Aluminum Strip Technical Data

  • Alloy / Grade : 1000 Series , 2000 Series , 3000 Series , 5000 Series , 6000 Series , 7000 Series , 8000 Series
  • Temper : O - H112 , T3 - T8 , T351 - T851
  • Thickness : 0.13mm - 6.5mm
  • Width : 3mm - 2600mm
  • Length : As per your requirements
  • Size : Customized Size
  • Feature : Eco-friendly
  • Package : Wooden Pallets

  • Type : High Purity Aluminium Strip

  • ​Color : Silver
  • Shape : Alu Strip
  • Hardness:O/HO
  • Conductivity ( % IACS ) : ≥61.5
  • Elongation ( % ) : > 23
  • Tolerances : As per your requirements
  • Application : Industry , Decoration , Building , Packing , Pressing , Etc .
  • Surface treatment : Mill Finish , Coated , Powder Coated , Anodized , Polished mirror , Embossed , Etc .
  • Special Specification is available on customer ’ s requirement
  • Delivery time : 7-30 days after order confirmation
  • MOQ : 1 ton
  • Coil ID : As per your requirements


Aluminum Strip Use

  • Aluminum Strip for transformer ( aluminum foil for transformer )
  • Aluminum Strip for high-frequency welding hollow aluminum strip
  • Aluminum Strip for finned radiator
  • Aluminum Strip for cable
  • Aluminum Strip for stamping
  • Aluminum Strip for edge strip , etc .



Aluminum Alloy Belt Categories :

  • pure aluminum strip
  • transformer aluminum strip
  • super hard aluminum strip
  • all soft aluminum strip
  • semi hard aluminum strip
  • rust proof aluminum strip

Electric Automobile Battery Case 4mm Thin Aluminum Strips

Electric Automobile Battery Case 4mm Thin Aluminum Strips


FAQ

1. who are we?
Henan Yongsheng Aluminum Co. , Ltd . is located in Gongyi City Industrial Cluster Area , Henan Province . The factory focuses on the production and development of aluminum products such as Aluminum Strip , Color Aluminum , Aluminum Sheet , Aluminum Coil , Pressed Aluminum Product , Embossed Aluminum , and non-slip aluminum Sheet . The factory covers an area of 100 , 000 square meters , has 476 employees , has 20 casting processing production lines , 2 color coated aluminum coil production lines , 3 slitting production lines , 4 shearing production lines , 32 punch presses , 10 CNC lathes , 4 The embossed aluminum production line has an annual output of more than 200 , 000 tons , and exports account for more than 40 % .

2. how can we guarantee quality?

1 - we can provide samples . We can send the samples by TNT,DHL, FEDEX, EMS, UPS or to your warehouse .

2 - Always a pre-production sample before mass production .

3 - Always final Inspection before shipment .

3. How long will it take to execute my order?
Our normal produce time is 7-15 working days.

4. How much will the shipping cost be?
This will depend on the size and weight of your order and the method of shipping.

5. Do you have products in stock?

There are 10000 tons stock for various size .plsease inform us what model you need , we will send stock details to you .

6. why should you buy from us not from other suppliers?

1 - 20 years experience in aluminum industry .

2 - Source manufacturers, leading equipment, excellent team skills .

3 - Low price, fast delivery and excellent quality .

4 - Professional technical solution .

7. what services can we provide?

1 - Accepted Delivery Terms : FOB , CFR , CIF , EXW , CIP , CPT , DDP , DDU ;

2 - Accepted Payment Currency : USD , EUR , HKD , GBP , CNY;

3 - Accepted Payment Type : T / T , L / C,D/P D/A , , Credit Card , PayPal , Western Union , Cash , Escrow ;

4 - Language Spoken : English , Chinese , Spanish , Japanese , Portuguese , Korean .


Packing conditions

Electric Automobile Battery Case 4mm Thin Aluminum Strips

Packing details :

  • l Normally , for aluminium strip , 20MT can be loaded into 20 foot container , we suggest to use 20 foot container , the sea freight rate is much cheaper than 40 foot container .
  • l the packing is very strong , which has 3 lays , thick fiber , foam , plastic , enough drying agent , suitable for long distance sea transportation .
  • l We use wooden pallet and steel pallet according to customer request ;
  • l Wooden boxes will be used in the outside packing .
  • l We have fixing in the container to avoid any damage during the transportation .
  • l 24 wooden boxes in one 20ft container .


Reliable quality , reasonable price and prompt delivery are insured to be offer to you .
